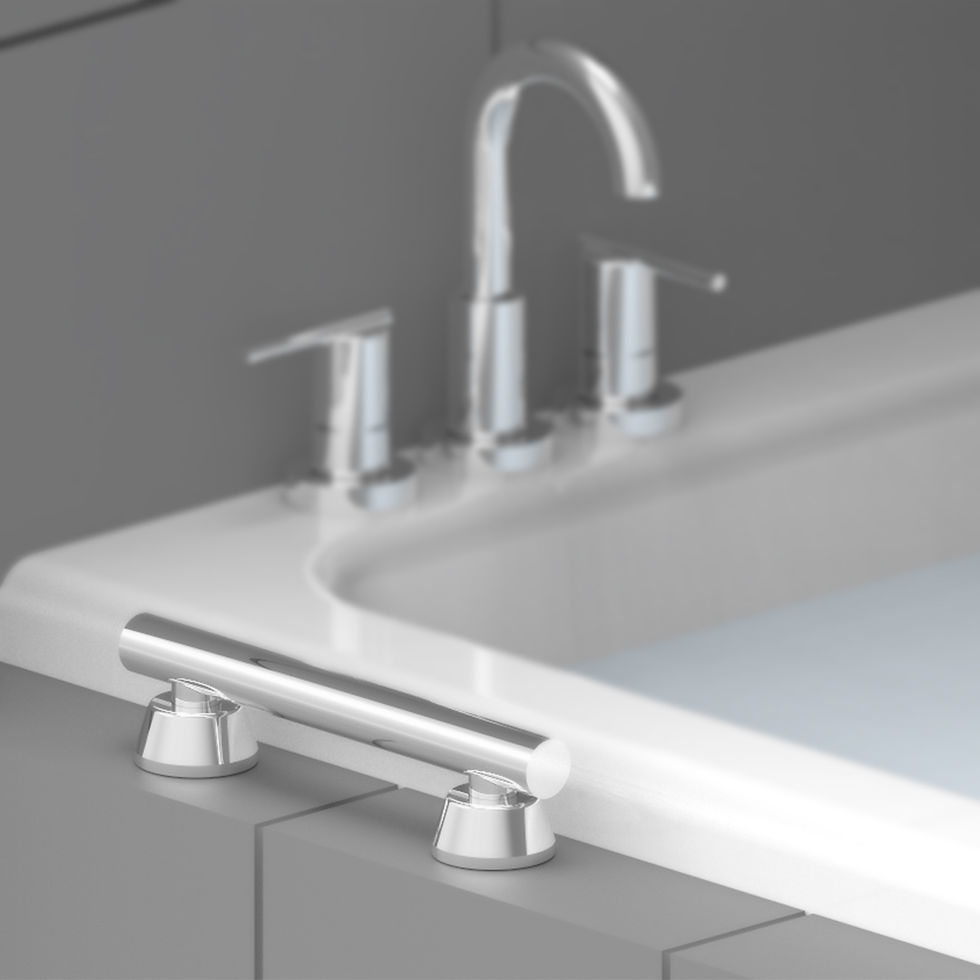

Invisia Linear Bars
Invisia’s Linear Bars are a simple and understated way to add new life to the safety features of any bathroom. With a user-weight capacity that can support up to 500lbs / 227kgs, each grab bar grants users peace of mind without compromising the beauty of the space. Featuring several colour options to complement décor, the luxurious Linear Bar can be installed anywhere—and at any angle—that support is needed. Available in 12", 18" and 24" lengths.
- ADA Compliant. Supports up to 500lbs when installed to structural wood backing, exceeding ADA structural strength requirements for grab bars and fasteners. ADA compliant rail diameter (1.25”) and wall clearance (1.50”).
- Easy to Install. Vertical, horizontal or diagonal installation. Can rotate to accommodate wood stud spacing.
- Stylish & High Quality. Discreet wall stems with concealed screws, making mounting areas virtually invisible. Made from rust resistant, #304 stainless steel.
Specifications & Installation
Material Stainless steel Finish / Colour Polished Chrome,
Powder Coat Bronze,
Powder Coat Matte Black
Weight Capacity 500lbs / 227kgs Rail Diameter 1.25″ / 31.8mm Wall Clearance 1.50″ / 38.1mm Rail Lengths Linear Bar 12: 12″ / 305mm
Linear Bar 18: 18″ / 457mm
Linear Bar 24: 24″ / 610mm
Installation Mechanism Must screw to wood backing behind wall.
LB-18 aligns with 16″ / 406mm stud spacing.
Installation Hardware #10 x 2″ / 51mm length, stainless steel wood screws (x4). Fasteners Exposed or Concealed Concealed; flange covers conceal mounting hardware. Commercial Use Yes Residential Use Yes Water Resistant Yes Rust Resistant Yes Country of Origin China Shipping Dimensions 27x4x4″ / 686x102x102mm Shipping Weight 4lbs / 1.8kgs Warranty Limited lifetime warranty
