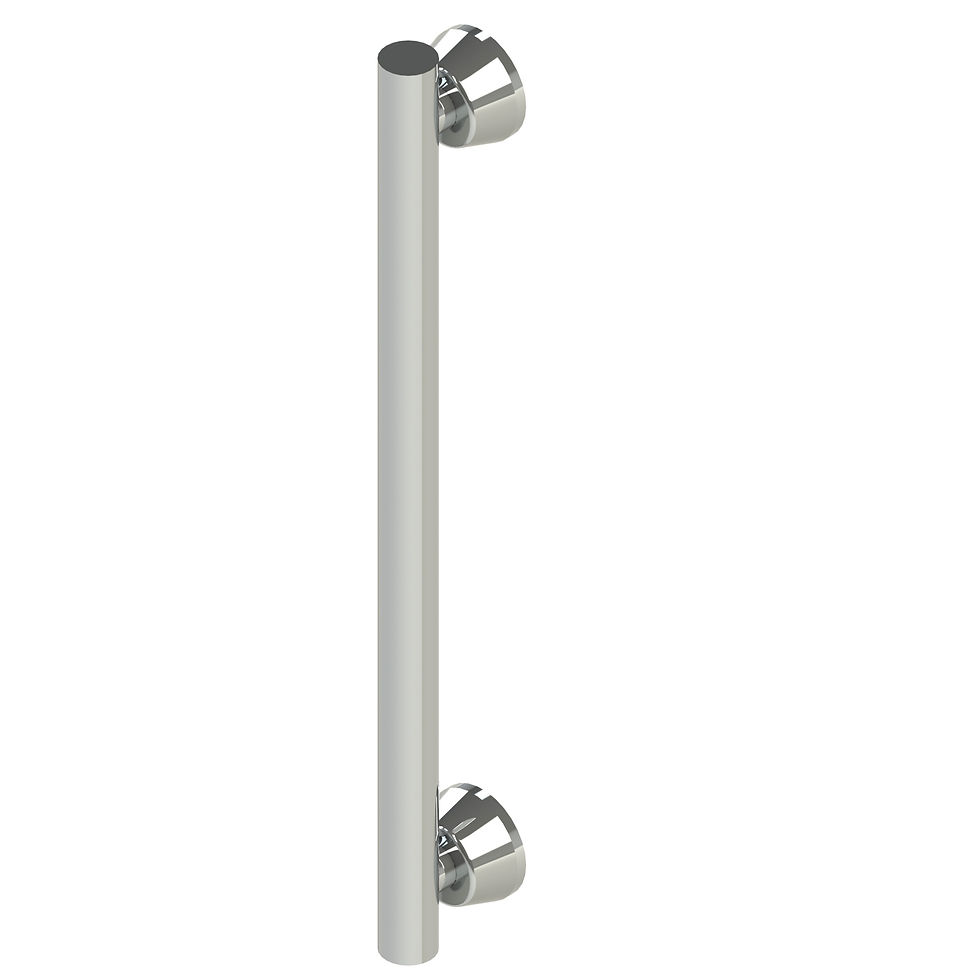

Invisia Linear Bar Bundle

Invisia Linear Bar Bundle

$507.00Price

Make it easy on yourself by ordering a complete set of  matching Invisia grab bars (12", 18" and 24").  Two linear grab bars for the shower/tub area, and one linear bar for the commode area.  Available in a number of beautiful finishes to complement any decor.  Optional add-ons include a towel bar and a toilet roll holder bar.

  • Features

    • ADA Compliant. Supports up to 500lbs when installed to structural wood backing, exceeding ADA structural strength requirements for grab bars and fasteners. ADA compliant rail diameter (1.25”) and wall clearance (1.50”).
    • Easy to Install. Vertical, horizontal or diagonal installation. Can rotate to accommodate wood stud spacing.
    • Stylish & High Quality. Discreet wall stems with concealed screws, making mounting areas virtually invisible. Made from rust resistant, #304 stainless steel.
  • Specifications & Installation

    Material Stainless steel
    Finish / Colour Polished Chrome,
    Brushed Stainless,
    Powder Coat Bronze,
    Powder Coat Matte Black
    Weight Capacity 500lbs / 227kgs
    Rail Diameter 1.25″ / 31.8mm
    Wall Clearance 1.50″ / 38.1mm
    Rail Lengths Linear Bar 12: 12″ / 305mm
    Linear Bar 18: 18″ / 457mm
    Linear Bar 24: 24″ / 610mm
    Installation Mechanism Must screw to wood backing behind wall.
    LB-18 aligns with 16″ / 406mm stud spacing.
    Installation Hardware #10 x 2″ / 51mm length, stainless steel wood screws (x4).
    Fasteners Exposed or Concealed Concealed; flange covers conceal mounting hardware.
    Commercial Use Yes
    Residential Use Yes
    Water Resistant Yes
    Rust Resistant Yes
    Country of Origin China
    Shipping Dimensions 27x4x4″ / 686x102x102mm
    Shipping Weight 4lbs / 1.8kgs
    Warranty Limited lifetime warranty

    Download Step-by-Step Installation Instructions
